Mini switch relay

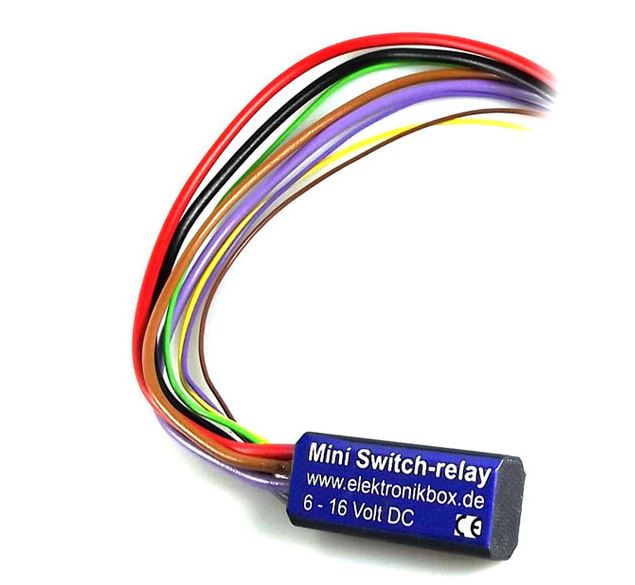

Axle Joost mini switch relay

Perfect for using push button for Hi/LOW beam.

Each time button is pressed, the beam is switched from Hi to LOW or viceversa

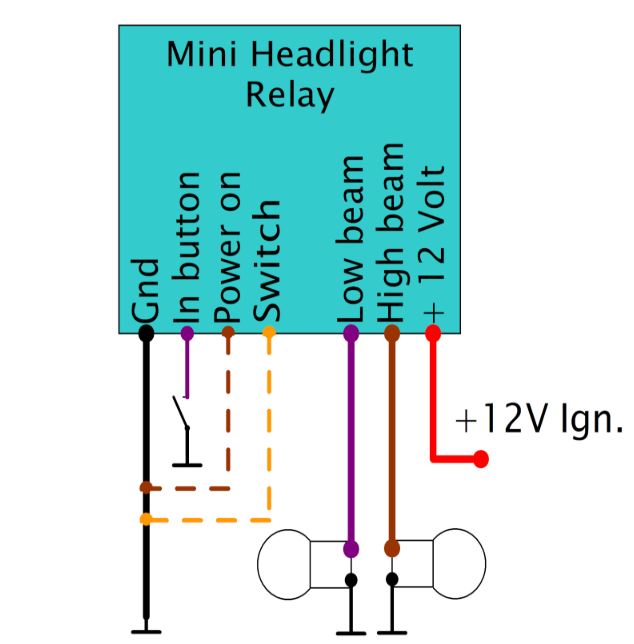

It can have different behaviour depending on how cables are connected:



Can be installed in handlebar or in the headlight.

You can switch off the headlight when you press the button for more than 2 seconds. A further press on the button switch on the headlight again..

Installing options:

The low beam is immediately on after switching on the ignition if the brown cable is unconnected. The low beam is off after switching on the ignition and it switches on after a button press if the thin brown cable is wired to ground.
The low beam switches off when you change to high beam if the green cable is not connected or the low beam stay on if the green cable is wired to ground.

Dimensions: 38 mm x 16 mm x 11 mm
Input voltage range: 6 – 16 Volt
Cables: Inputs 0,14 mm², Outputs 0,75 mm²
Maximum output: 2 x 60 Watt

Manual language English/German

Made in Germany
