Internal fork stop kit 9-84 FL, FX, FXWG; 84-86 SOFTAIL

Description

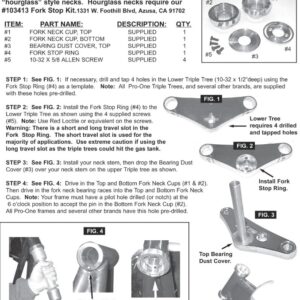

This internal fork stop kit can be used on all 1″ stem Harley Davidson with tapered bearings. The lower bearing cup have built in a protuberance that will move into the corresponding slot of the disc plate that have to be screwed into the lower triple tree. Customer can choose to assemble the disc plate straight or tilted 180°, engaging the larger slot (wider steering angle) or the narrower one. We suggest a high strenght loctite for coaxial assembly or drill a hole with a pin to avoid rotation of the bearing race into the frame oh the toughest steering stops.
It’s a bolt on on our compatible triple trees. This is made entirely from stainless steel. Bearings not included.
